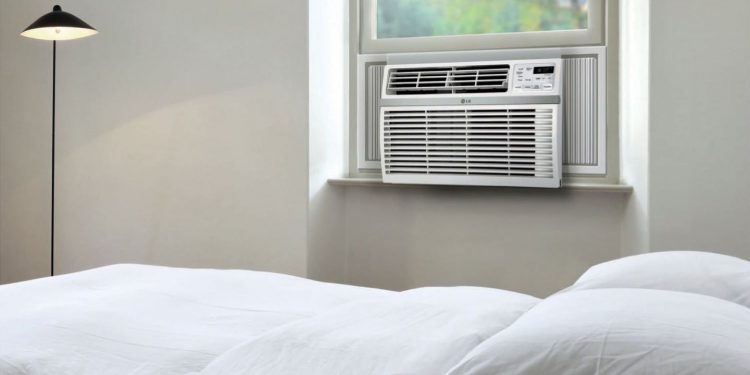

Window air conditioner , the condenser and evaporator are fixed at two ends and the hermetically scale compressor is in the middle There is an insulated cabinet around the cooling coil with two compartments
A blower is fitted in this cabinet behind evaporator coil which pumps air into upper compartment
The blower pulls room air through cooling coil
This air is the discharged back to the room through the upper compartment
In some models the discharge is done from the side of the coil.
The condenser cooling is done by a fan, which pulls air from sides and throws over the condenser coil The fan and the blower are both run by the same motor.
The motor has two speeds, controlled by a knob on the control panel.
The control panel has three knob One controls speed of the blower motor to give higher coldness or lower coldness
The second knob is of a thermostat, the bulb of which is placed at the filter to sense temperature of room air being sucked in by the blower. This allows the user to set room temperature.
The third knob operates a flap in the insulated cabinet to allow ventilation of air supply.
The window air conditioner comes in capacities 1, 1.5, 2 and 3 TR.
