Product Details

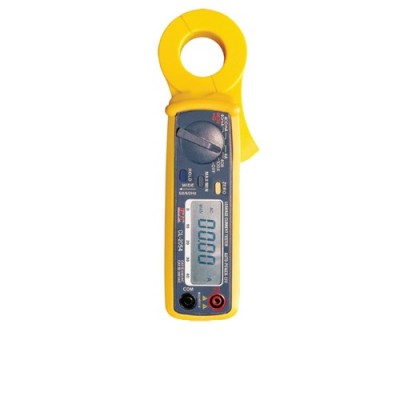

HTC-B7 CL-2054 mA Clamp Meter 10uA high Resolution
Sold By :HTC
Delivery duration : * 8 to 10 Days
Quantity:
Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details
Technical Details:-
Features:-Specifications
Model : CL-2054
Display : Large 3 3/4 ( 4000 counts ) LCD Display
AC Voltage Range : 400V
AC Voltage Accuracy : +/- ( 1.0% +10d )
Current AC: 40mA ~ 100A, 10uA ~ 100mA, ±( 1.0% +3d )
- Voltage AC: 400V, 0.1Va, ±( 1.0% +10d )
- Resistance: 40 ~ 400Ω, 0.1Ω, ±( 1.0% +2d )
- Continuity Test: Threshold 40Ω, Continuity Beeper 2.5KHz
Dimension :209(H) x 43(W) x 30(D)mm
Features:-
Product Details
Brand HTC
Product Type AC LEAKAGE CURRENT TESTER
Category Electrical Power Testing
SKU HTC13690ACHT140417
Model CL-2054
Display Large 3 3/4 ( 4000 counts ) LCD Display
AC Voltage Range 400V
AC Voltage Accuracy +/- ( 1.0% +10d )
AC Current Range 40mA ~ 100A
AC Current Accuracy +/- ( 1.0% +3d )
Resistance 40 ~ 400ohm
Resistance Accuracy +/- ( 1.0% +2d )
Count 4000
Key Features 10uA high Resolution Large 3 3/4 ( 4000 counts ) LCD Display Auto Power FF Shielded transformer jaw opens to 1.2" Max/Min, Data hold, Low Battery indication Overload Protection
Warranty 6 Months
