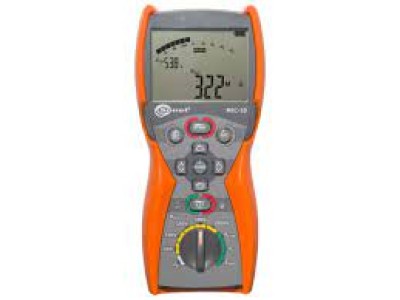

SONEL MIC-10 Insulation Resistance meter
Sold By :SONEL
Delivery duration : * 8 to 10 Days
Quantity:
Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details
Insulation resistance measurement:
- selected test voltage: 50, 100, 250, 500, 1000 V,
- continuous indication of insulation resistance or leakage current,
- automatic discharge of capacitance of tested object after the insulation resistance measurement,
- acoustic signalling of five-second periods to facilitate obtaining time characteristics,
- indication of actual test voltage during the measurement,
- protection against measuring live objects,
- three-lead measurement.
Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current
Low-voltage circuit continuity and resistance measurement:
- circuit resistance measurement (<1999 ) with the <15 mA current,
-quick sound signal if circuit resistance is below 30Ω.
Capacitance measurement during the RISO measurement
Measurement of alternating and direct voltages in the 0...600 V range.
Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
Meter conform to EN 61557.
Electric safety:
Type of insulation: double, according to EN 61010 - 1 and IEC 61557
measurement category: IV 600 V (III 1000 V) according to EN 61010 - 1
protection class acc. to EN 60529: IP67
Other technical specifications:
power suply: 4 alkaline batteries or or battery package Ni-MH
weight: ~1 kg
dimentions: 220 x 100 x 60 mm
Insulation resistance measurement
Measuring range according to EN 61557 - 2 for UN=50 V: 50 kΩ...250,0 MΩ
