Technical Details:-

Size of the circuit-breaker S2
Size of contactor can be combined company-specific S2
Product extension
● Auxiliary switch Yes
Power loss [W] for rated value of the current
● at AC in hot operating state 29.5 W
● at AC in hot operating state per pole 9.8 W
Insulation voltage with degree of pollution 3 at AC
rated value
690 V
Surge voltage resistance rated value 6 kV
maximum permissible voltage for safe isolation
● in networks with grounded star point between
main and auxiliary circuit
400 V
Feature:-

• EAN:-  4011209945463
• UPC 804766321245
• Commodity Code 85362090
• LKZ_FDB/ CatalogID CC-IC10
• Product Group 5334
• Country of origin Germany

Specification:-

Article Number (Market Facing Number):-     3RV2032-4KA10

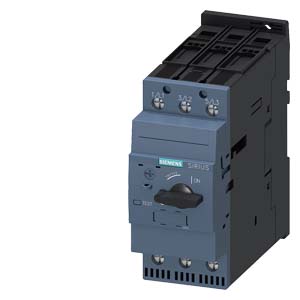

Product Description :-    Circuit breaker size S2 for motor protection, CLASS 10 A-release 62...73 A N-release 949 A screw terminal increased switching capacity

Export Control Regulations:- AL : N / ECCN : N Standard lead time ex-works:- 1 Day/Days Net Weight (kg):- 1,170 Kg Product Dimensions (W x L x H) :-Not available Packaging Dimension:- 62,00 x 147,00 x 167,00 Package size unit of measure:- MM Quantity Unit:- 1 Piece Packaging Quantity:- 1
