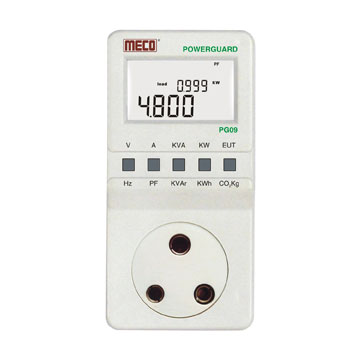

MECO POWERGUARD (PG09 20A)
₹2916
₹3240.00
10%
Sold By :MECO
Delivery duration : * 8 to 10 Days
In Stock
(24 items left)
Quantity:
Size : 156*78*48mm Price : 2250
Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details
SPECIFICATION
RMS Voltage (V) - 240V
RMS Current (A) -0-6Amps
Active Power @240VAC (KW) - 0-1.4 KW
Apparent Power @240VAC (KVA) - 0-1.4 KVA
Reactive Power @240VAC (KVAr) - 0-1.4KVAR
Power Factor (PF) - 0.26-.96 KW
Line Frequency (Hz) -45.00 ~ 55.00 Hz
Features :
- Three Pin Socket and Plug Suitable for Indian Socket
- Large Dual Row LCD Display with Backlight and Annunciators
- Memory Retention (KWh, EUT)
- Simple, Easy and Accurate
- Continuous Measurements
- Counts CO2 generated by Electrical Equiptment (0.555kg CO2 is generated by using 1 KWh Energy)
MEASUREMENT
- TRMS Voltage (V)
- Frequency (Hz)
- TRMS Current (A)
- Power Factor (PF)
- Apparent Power (KVA)
- Reactive Power (KVAr)
- Active Power (KW)
- Energy Consumption (KWh)
- Energy Usage Time (EUT)
- Carbon Emission (CO2 in kg)
Accuracy : Class 1.0
Power Consumption : Less than 2W
Working Temperature : -10°C to +55°C
Dimensions : 156 x 78 x 48mm
Weight : 300gms (approx.)
RMS Voltage (V) - 195 ~ 265V
APPLICATION
- Teaching
- Demonstration & Testing of Electrical Energy Consumption of Household / Office Appliances.
- It can be used in Houses, Offices, Shops, Schools, Laboratories etc.
