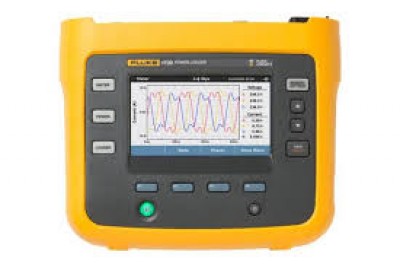

Fluke 1736 Power Logger Three-Phase Power Loggers
Fluke 1736 Power Logger Three-Phase Power Loggers

Fluke 1736 Power Logger Three-Phase Power Loggers

Sold By : FLUKE
  • Available
First select size for quantity
Size:
Price:
₹396,813 /pc
Discount Price:
₹333,323 /pc

16%
Payment:
  • visa card
  • master card
  • maestro card
Delivery duration
* 8 to 10 Days
Check

Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details
Payment:
  • visa card
  • master card
  • maestro card
Contact Person
Customer Support

+91-9168103909

Technical Details:-

Reference conditions:

• Environmental: 23 °C ± 5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, RH <65 %

• Input conditions: Cosϕ/PF=1, Sinusoidal signal f=50 Hz/60 Hz, power supply 120 V/230 V ±10 %.

• Current and power specifications: Input voltage 1 ph: 120 V/230 V or 3 ph wye/delta: 230 V/400 V Input current: I > 10 % of Irange

• Primary conductor of clamps or Rogowski coil in center position

• Temperature coefficient: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

Electrical specifications

Power supply

Voltage range

100 V to 500 V using safety plug input when powering from the

measurement circuit

100 V to 240 V using standard power cord (IEC 60320 C7)

Power consumption Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)

Efficiency ≥ 68.2 % (in accordance with energy efficiency regulations)

Maximum no-load consumption < 0.3 W only when powered using IEC 60320 input

Mains power frequency 50/60 Hz ± 15 %

Battery Li-ion 3.7 V, 9.25 Wh, customer-replaceable

On-battery runtime Four hours in standard operating mode, up to 5.5 hours in power saving mode

Charging time < 6 hours

Data acquisition

Resolution 16-bit synchronous sampling

Sampling frequency 10.24 kHz at 50/60 Hz, synchronized to mains frequency

Input signal frequency 50/60 Hz (42.5 to 69 Hz)

Circuit types 1-ϕ, 1-ϕ IT, split phase, 3-ϕ delta, 3-ϕ wye, 3-ϕ wye IT, 3-ϕ wye balanced, 3-ϕ

Aron/Blondel (2-element delta), 3-ϕ delta open leg, currents only (load studies)

Data storage Internal flash memory (not user replaceable)

Memory size Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events1

Basic interval

Measured parameters Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental

power, DPF, energy

Averaging interval User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min

Averaging time min/max values

Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to

IEC61000-4-30

Aux, Power: 200ms

Demand Interval (Energy Meter Mode)

Measured parameters Energy (Wh, varh, VAh), PF, maximum demand, cost of energy

Interval User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off

Power quality measurements

Measured parameter Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD

Warranty :- 6 Months
